Description
Looking for a reliable jack nut supplier in the USA?
Our jack nuts are blind threaded inserts designed for thin, soft, or brittle materials such as sheet metal, plastic, and fiberglass. With fast shipping from our U.S. warehouse and factory-direct pricing, we support OEMs, distributors, and industrial applications.

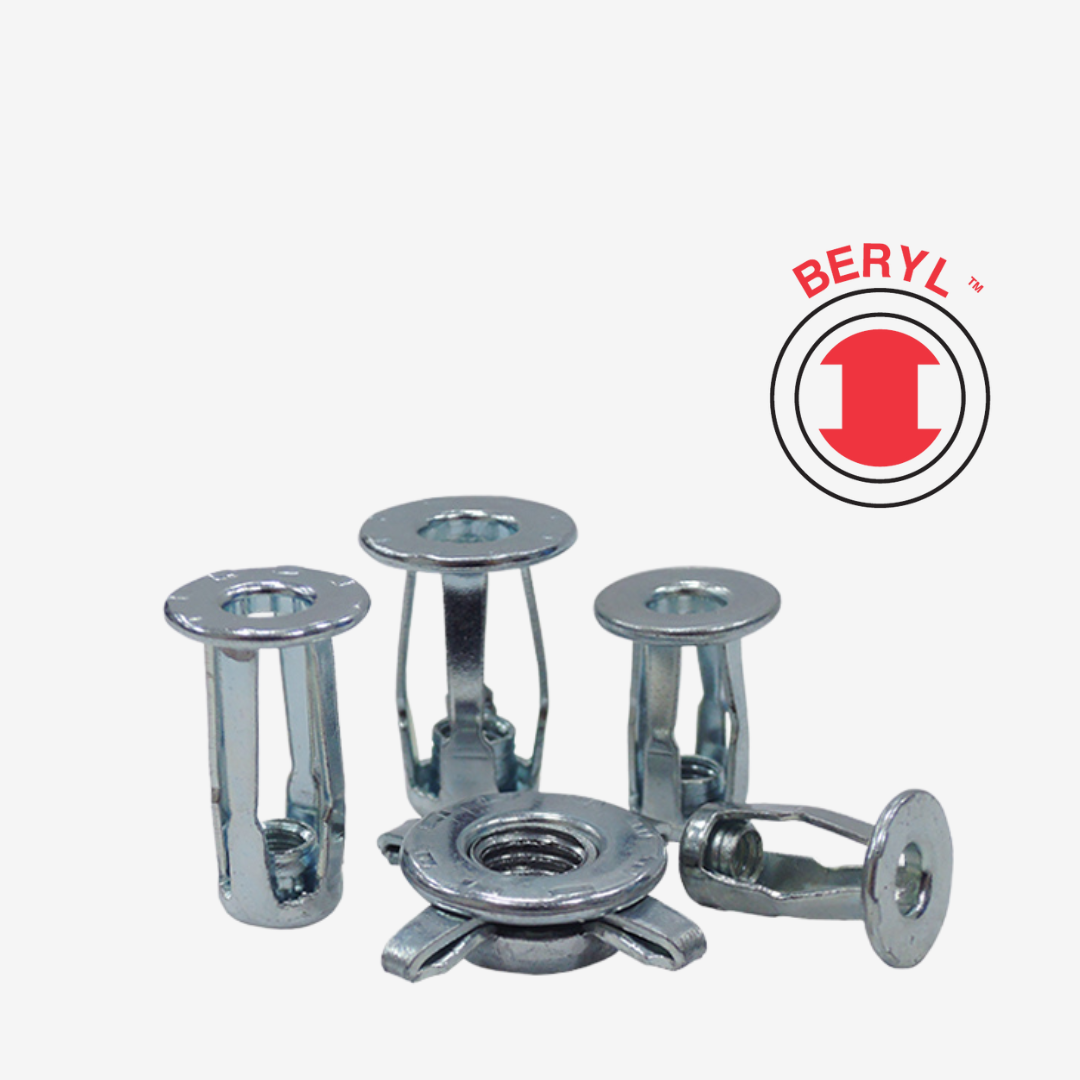

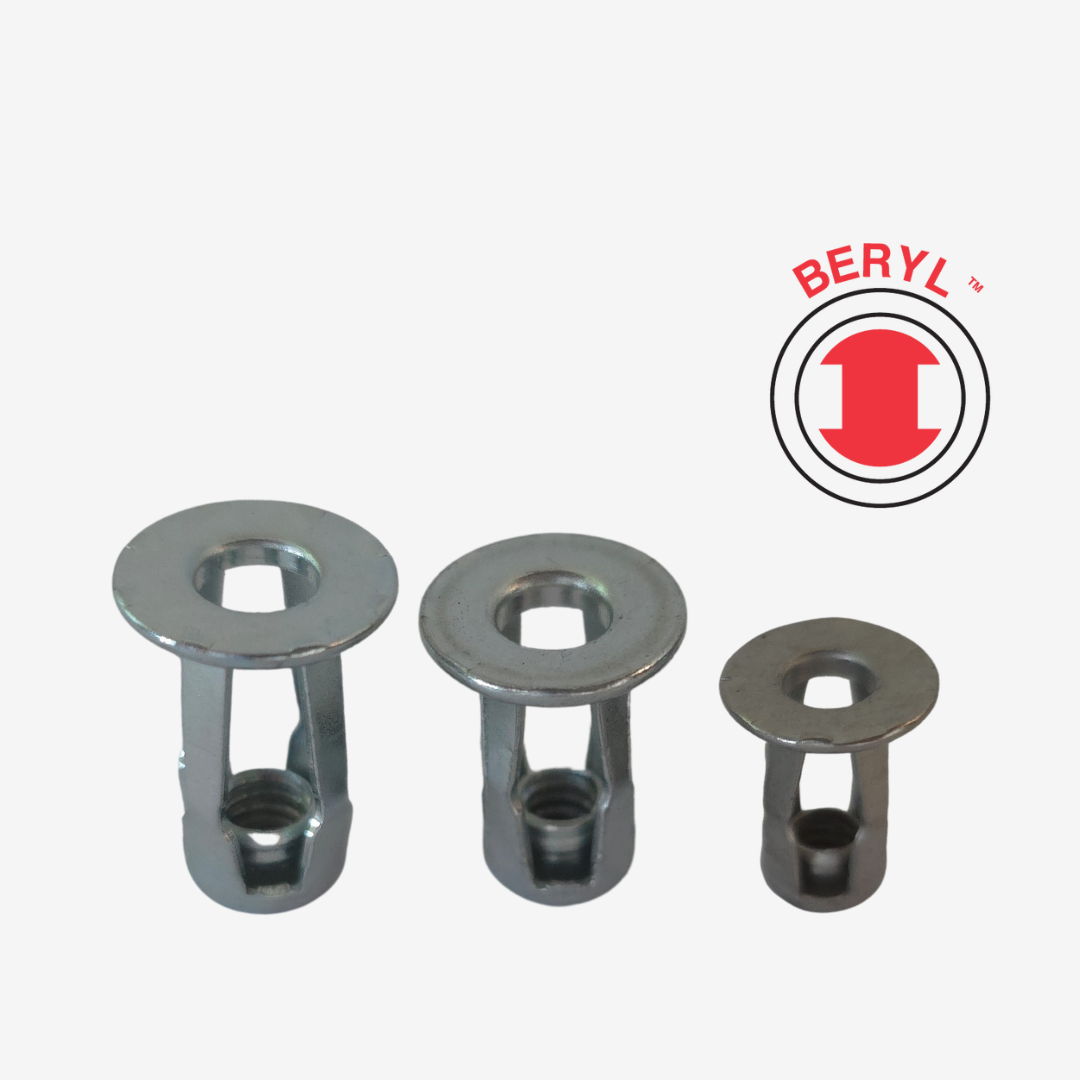

Blind Jack Nuts
Available in both inch and metric thread sizes
with materials available in Steel (Zinc Plated) and Stainless Steel.
Thread Size: Inch
6-32 × 0.669 Jack Nut (Grip Range: 0″–0.197″)
6-32 × 0.866 Jack Nut (Grip Range: 0.197″–0.394″)
10-24 × 0.709 Jack Nut (Grip Range: 0″–0.197″)
10-24 × 0.906 Jack Nut (Grip Range: 0.197″–0.394″)
1/4-20 × 0.709 Jack Nut (Grip Range: 0″–0.197″)
1/4-20 × 0.906 Jack Nut (Grip Range: 0.197″–0.394″)
Thread Size: Metric
M4 × 17 Jack Nut (Grip Range: 0–5mm)
M4 × 22 Jack Nut (Grip Range: 5–10mm)
M5 × 18 Jack Nut (Grip Range: 0–5mm)
M5 × 23 Jack Nut (Grip Range: 5–10mm)
M6 × 18 Jack Nut (Grip Range: 0–5mm)
M6 × 23 Jack Nut (Grip Range: 5–10mm)

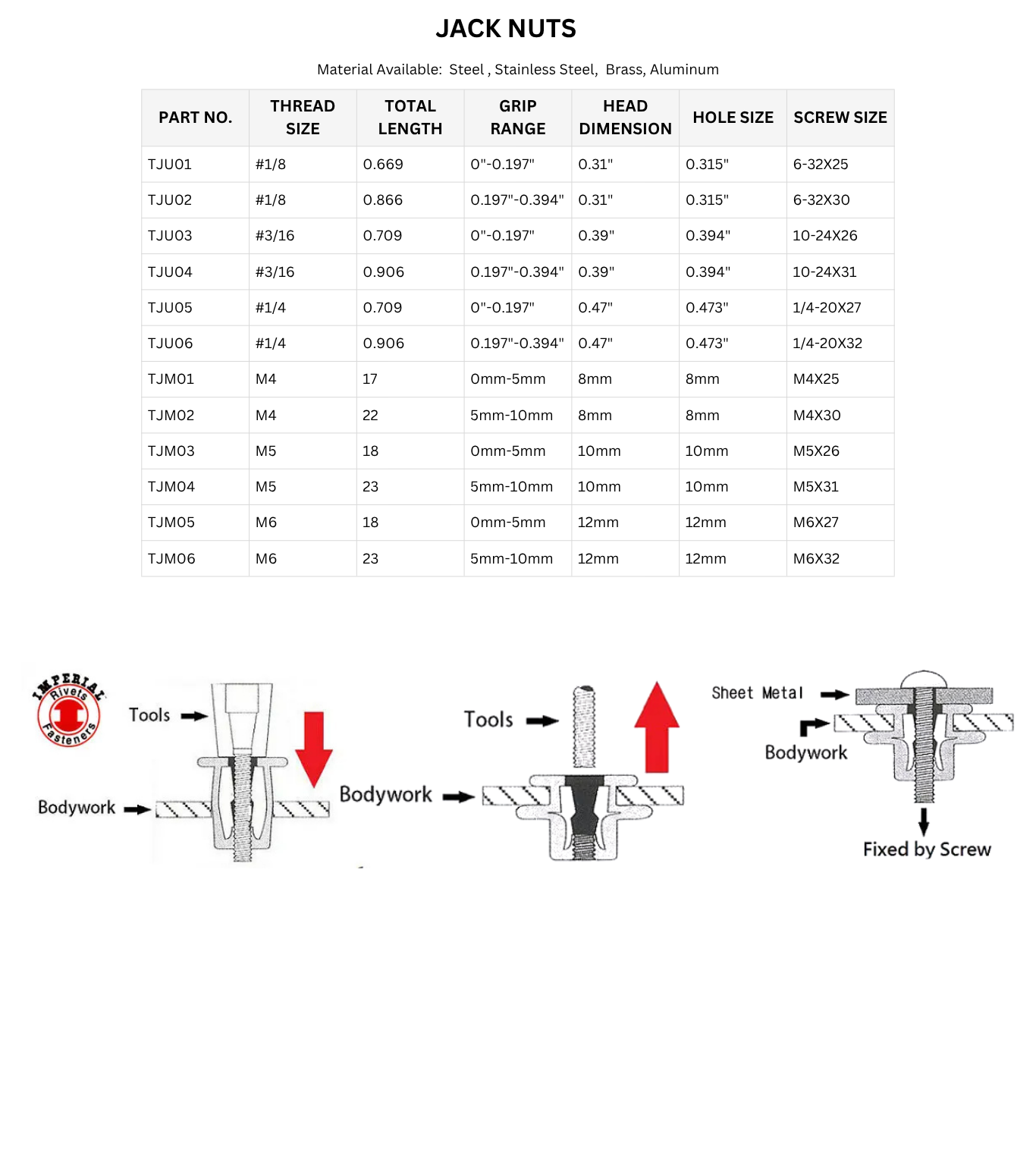

How to Install Jack Nuts？
1. Insert the jack nut into the pre-drilled hole.
2. Thread the installation tool or screw into the jack nut.
3. Tighten the tool to collapse the legs behind the material.
4. The jack nut expands and creates a secure threaded insert.
Jack nuts are ideal for applications where access to the backside is limited, such as sheet metal, plastic, and fiberglass installations.
Watch how jack nuts are installed using a manual jack nut tool:
👉 View our Jack Nut Tool here.Jack Nut Tool | Installation Tool for M4–M6 & 6-32 to 1/4-20 | Factory Direct Supplier
## Key Features
– Expanding legs design provides strong grip in soft materials
– Ideal for thin sheet metal, plastic, and fiberglass
– Blind installation – access required from one side only
– Available in metric and inch thread sizes
– Fast shipping from U.S. warehouse (1–2 business days)
