Description

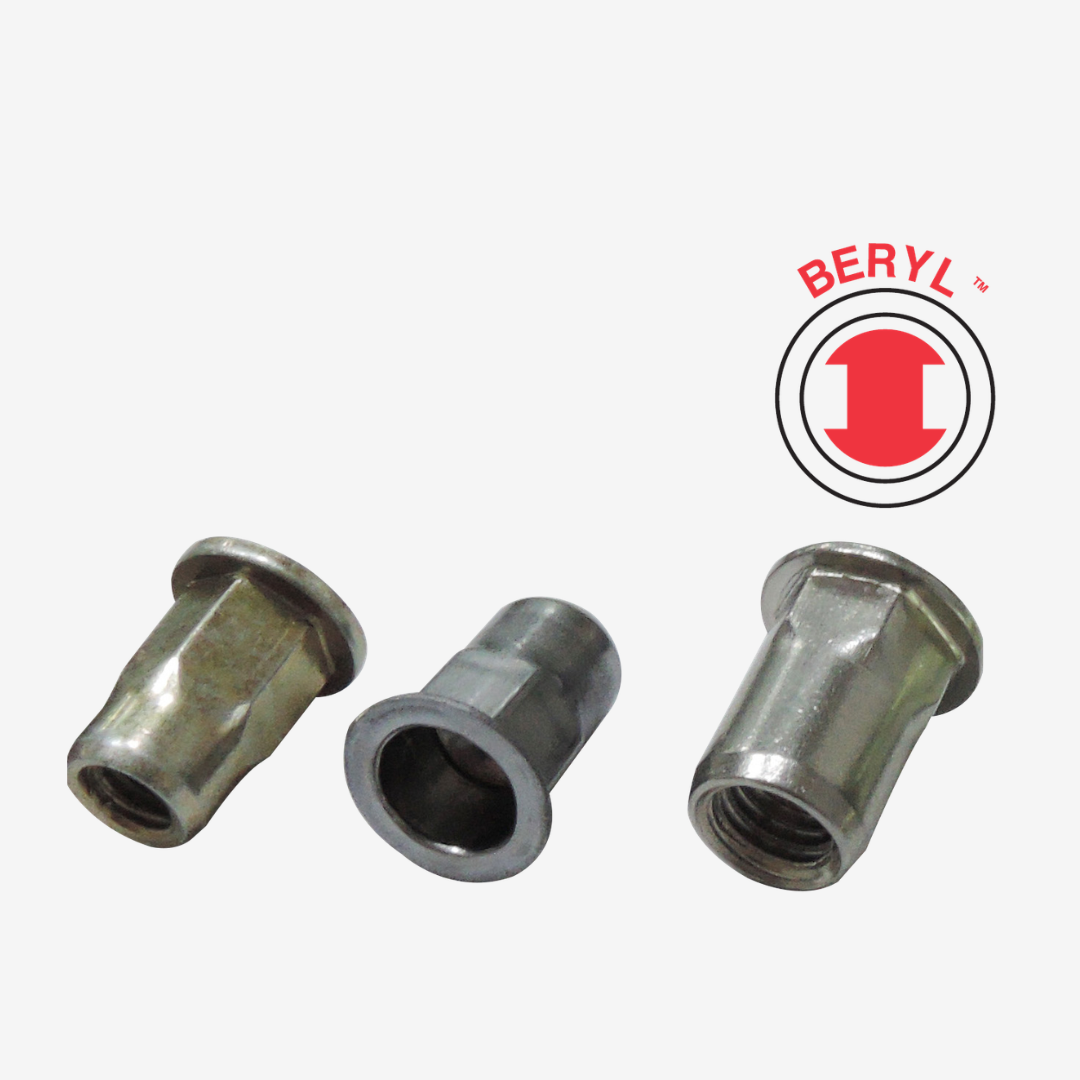

Half Hex Blind Rivet Nuts for Round Hole

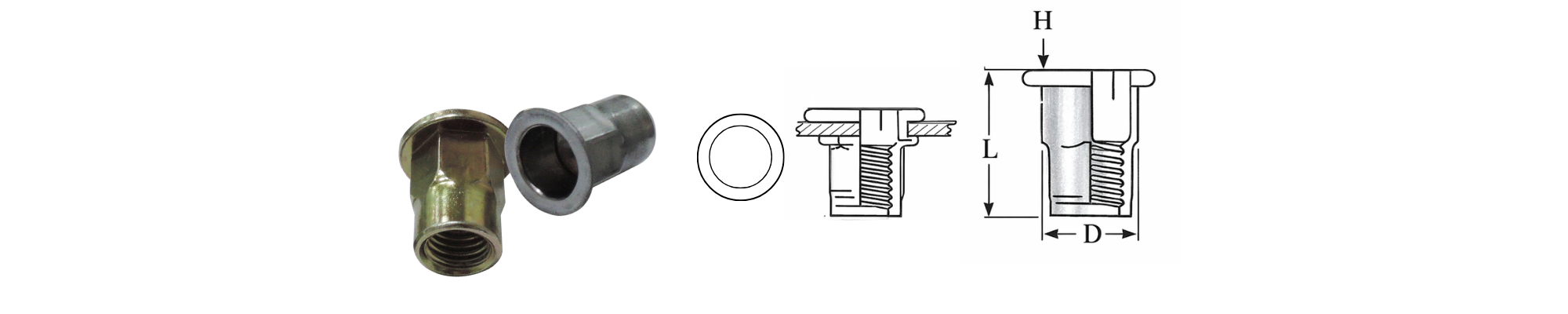

Half Hex Blind Rivet Nut for Round Hole Specifications
The following table shows the standard dimensions and grip ranges for half hex blind rivet nuts.
|
THREAD SIZE (UNC) |
PART NO. |
HOLE SIZE +0.004 / -0.0 |
Body Dia. /D +0.0 / -0.004 |
Length / L ±0.015 |
Head Dia. / A ±0.012 |
Head Height / H +0.006 / -0.002 |
GRIP RANGE |
| UNC 8-32 | HBI 832 | 0.24 | 0.232 | 0.421 | 0.354 | 0.035 | 0.02-0.098 |
| UNC 10-24 | HBI 1024 | 0.28 | 0.272 | 0.52 | 0.394 | 0.04 | 0.02-0.118 |
| UNC 1/4-20 | HBI 420 | 0.358 | 0.35 | 0.63 | 0.512 | 0.059 | 0.02-0.130 |
| UNC 5/16-18 | HBI 518 | 0.437 | 0.429 | 0.709 | 0.63 | 0.059 | 0.02-0.130 |
| UNC 3/8-16 | HBI 616 | 0.516 | 0.508 | 0.827 | 0.748 | 0.079 | 0.02-0.138 |
|
THREAD SIZE (Metric) |
PART NO. |
HOLE SIZE +0.1/-0.0 |
Body Dia. /D +0.1/-0.0 |
Length / L ±0.4 |
Head Dia. / A ±0.3 |
Head Height / H +0.15 / -0.05 |
GRIP RANGE |
| M4x0.7 | HBM4 | 6.1 | 5.9 | 10.7 | 9 | 0.9 | 0.5-2.5 |
| M5x0.8 | HBM5 | 7.1 | 6.9 | 13.2 | 10 | 0.9 | 0.5-3.0 |
| M6x1.0 | HBM6 | 9.1 | 8.9 | 16 | 13 | 1.5 | 0.5-3.3 |
| M8x1.25 | HBM8 | 11.1 | 10.9 | 18 | 16 | 1.5 | 0.5-3.3 |
| M10x1.5 | HBM10 | 13.1 | 12.9 | 21 | 19 | 2 | 0.5-3.5 |
Available Thread Sizes
UNC Sizes
6-32 Rivet Nut
8-32 Rivet Nut
10-24 Rivet Nut
10-32 Rivet Nut
1/4-20 Rivet Nut
Metric Sizes
M4 x 0.7 Rivet Nut
M5 x 0.8 Rivet Nut
M6 x 1.0 Rivet Nut
M8 x 1.25 Rivet Nut
M10 x 1.5 Rivet Nut
Rivet Nut Installation Tools
Blind rivet nuts are commonly installed using hand rivet nut tools, pneumatic rivet nut tools or hydraulic rivet nut tools.
During installation the body collapses behind the material, creating a strong mechanical connection.
Typical Rivet Nut Applications
Sheet Metal Fabrication
Automotive Panels and Components
Electrical Cabinets and Enclosures
HVAC Systems
Solar Mounting Systems
Industrial Equipment
Blind Rivet Nut Supplier
Imperial Rivets & Fasteners is a factory-direct rivet nut supplier providing high-quality blind rivet nuts for sheet metal and industrial applications.
We supply both UNC and metric thread sizes including 6-32, 8-32, 10-24, 10-32, 1/4-20, M4, M5, M6, M8 and M10 rivet nuts.
